POND AERATION - LAKE AERATION

Aeration Information


Hiblow pumps are used globally for a wide range of applications. One of the most common is aerating ponds.

Hiblow have produced over 12 million units and are market leaders of this technology. They are known for high quality and reliability. Their pumps have a long life expectancy which is why they are used in so many critical applications.

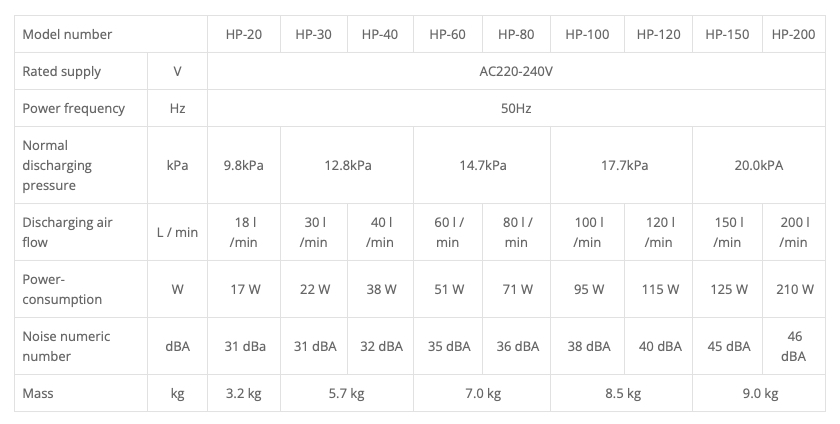

To determine what size pump you require, please use the data table below. The amount of litres per minute shown below is the refferance number for each pump.

Model number HP-20 HP-30 HP-40 HP-60 HP-80 HP-100 HP-120 HP-150 HP-200
Rated supply V AC220-240V
Power frequency Hz 50Hz
Normal discharging pressure kPa 9.8kPa  12.8kPa  14.7kPa   17.7kPa 20.0kPA
Discharging air flow L / min  18 l /min  30 l /min  40 l /min  60 l / min  80 l / min  100 l /min  120 l /min  150 l /min  200 l /min
Power-consumption W  17 W  22 W  38 W  51 W  71 W  95 W  115 W  125 W  210 W
Noise numeric number dBA  31 dBa  31 dBA  32 dBA  35 dBA  36 dBA  38 dBA  40 dBA  45 dBA  46 dBA
mass kg 3.2 kg 5.7 kg  7.0 kg  8.5 kg  9.0 kg

Larger Aeration


Aeration of large volume systems is typically carried out using a series of diffusers where the tubes are fixed to an extrusion. These can be fixed or removable. The Norres diffusers are very durable and are suited for use in highly acidic applications including:

  • Landfill lagoons
  • Paper mills
  • Chemical storage vessels
  • Waste treatment plants
  • Municipal water treatment plants
  • Aquaculture – large lakes

It provides fine bubble aeration, delivering an increased Oxygen transfer rate (OP) and 25% typical reduction in energy costs.

If you have any questions about our systems, please contact us

Large Aeration Projects
